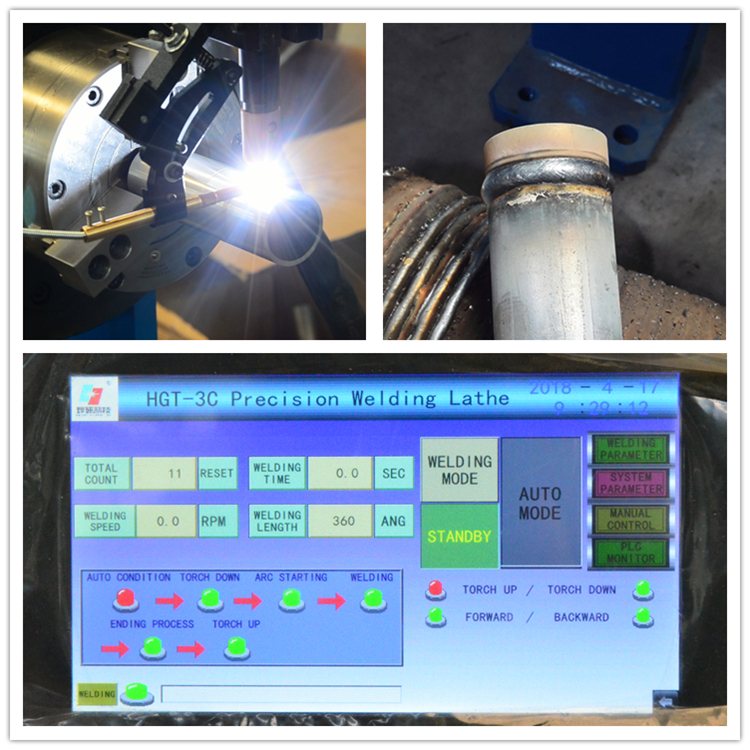

HF-300LY vertical girth flange pipe welding lathe machine
| Item | Unit | HTC-3C | HF-300W | HF-300WS | HF-300L | HF-300LY |
| Max. workpiece’s length | mm | 500 | 1200 | - | ||
| Max. workpiece’s weight | kg | 30 | 50 | 250 | ||
| Max. workpiece’s diameter | mm | 350 | 550 | 600 | ||
| Chuck’s working diameter | mm | 10 - 120 | 10 - 200 | - | ||
| Through-hole diameter | mm | 30 | 50 | - | ||
| Torch stroke(pneumatic) | mm | 100 | 150 | |||
| Tailstock stroke(pneumatic) | mm | - | 150 | - | - | |
| Headstock rotating speed | RPM | 1 - 10 | 0.6 - 6 | |||
| Headstock angle | ° | 0°, 30°, 45°, 60°, 90° | - | |||
| Torch adjustment | mm | X: ± 30 mm Y:± 30mm Z: ± 30 mm | ||||
| Max. welding current | A | 500 | ||||
| Power input | V | AC 1 Phase 220V(±10%) 50Hz | ||||
| Weight | kg | 310 | 380 | 400 | 300 | 350 |
| Package | CBM(m³) | 1.45 | 2.39 | 2.39 | 1.08 | 1.37 |
In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
In our factory:
Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.
From now on, we obtained 5 Patents of invention and 13 Patents of
Utility Model; our products are approved by CCC and CE,
additionally, our company have had ISO 9001:2008, ERR and CRM
management system.
We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
|
|
