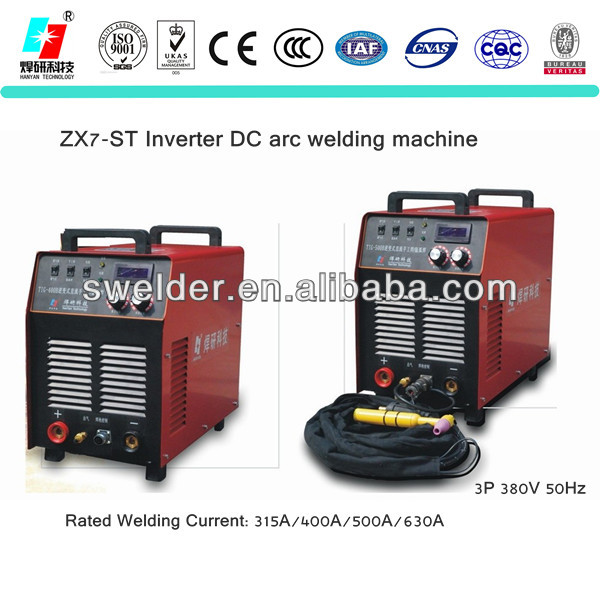

ZX7-315 Inverter DC single phase portable arc welding machine
single phase portable arc welding machine
Model | ZX7-315ST | ZX7-400ST | ZX7-500ST | ZX7-630ST |
Power | 3P AC (380V) 50 Hz | 3P AC (380V) 50 Hz | 3P AC (380V) 50 Hz | 3P AC (380V) 50 Hz |
Rated Input Capacity | 14KVA | 19KVA | 27KVA | 36KVA |
Rated Input Current | 21A | 30A | 42A | 54A |
Open Circuit Voltage | 61V | 67V | 75V | 79V |
Rated Welding Current | 315A | 400A | 500A | 630A |
Rated Welding Voltage | 32V | 36V | 40V | 45.2V |
Rated Duty Cycle | 45% | 45% | 45% | 45% |
Current Adjust Range | 30-315A | 30-400A | 40-500A | 50-630A |
Insulation Class | F | F | F | F |
Weight | 26Kg | 28Kg | 32Kg | 43Kg |
Dimensions | 560*300*500mm | 560*300*500mm | 560*300*500mm | 610*310*520mm |
features of single phase portable arc welding machine
1. Adopt optimization design, control is more simple and reliable.
2. Important component adopts import device.
3. IGBT inverter, high dynamic speed, stabilized arcs.
4. Adopt thrust circuit to avoid welding electrode connected with workpiece.
5. With TIG function.
6. Small size, light weight, high efficiency.
In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
In our factory:
Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.
From now on, we obtained 5 Patents of invention and 13 Patents of
Utility Model; our products are approved by CCC and CE,
additionally, our company have had ISO 9001:2008, ERR and CRM
management system.
We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
|
|
